Performance features

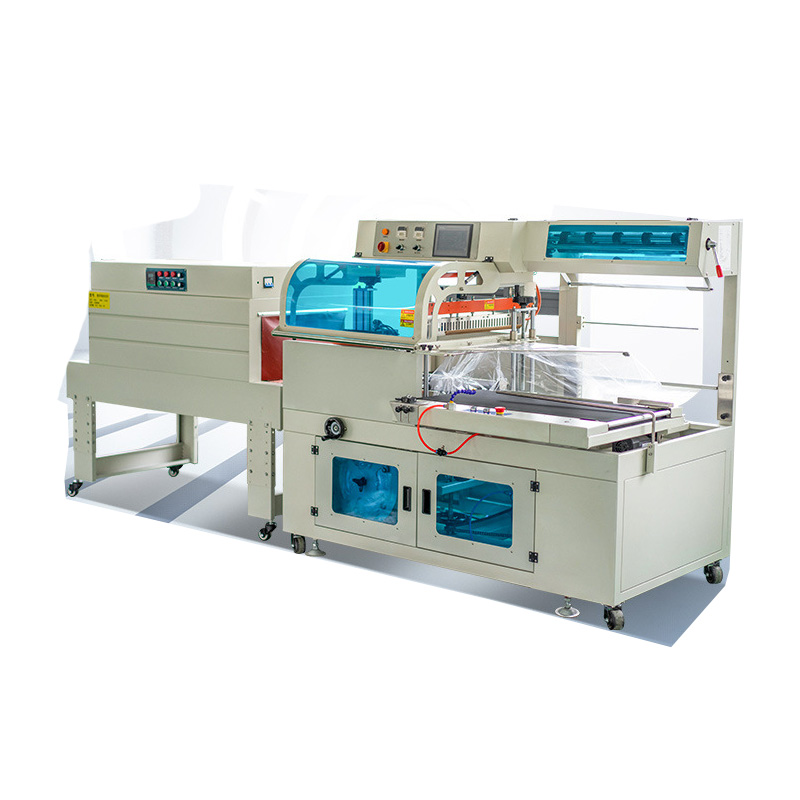

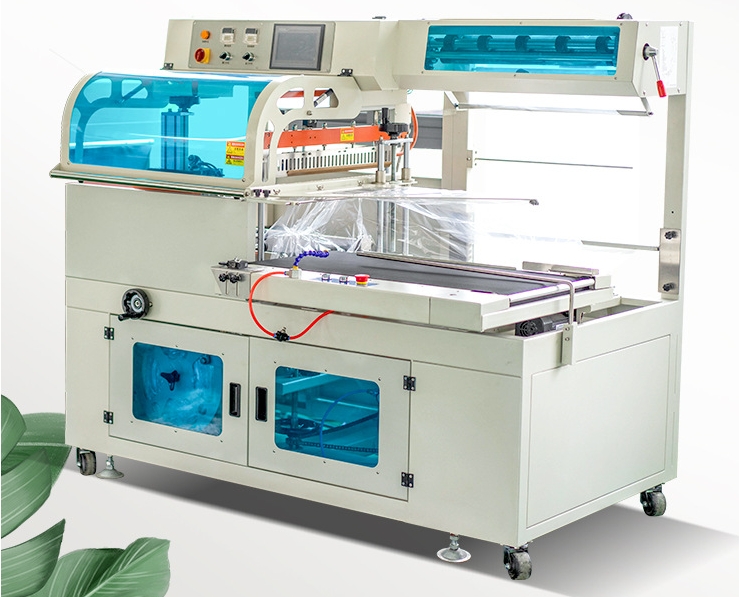

•FQL450S is fully automatic L bar sealer which is widely used in mass production packaging line with high efficiency. •With movable type punching device, you can switch the punching position and control the pinholes number. •Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking with zero pollution. •Using digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate which can be set arbitrarily. •Imported photoelectric sensor, positioning accuracy, fast response. •Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation. • Manual adjustment film-guide system and feeding conveyor platform make the machine suitable for different width and height items. •Equipped with automatic scrap recycling mechanism, built-in film broken alarm function. •The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting. •Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film. •The entire machine realizes unmanned operation with the production line connecting. •Apply to daily necessities, food, cosmetics, pharmaceutical, hardware and other industries shrinking packaging. •BS4522N shrink tunnel adopts the design of internal double recycling air fan, so that the hot air in the tunnel is even, constant temperature. •The machine uses stainless steel finned heating tube which has a long service life and high heating efficiency. •Chain bar conveying , using hollow steel covered with durable imported silicone tube, each bar can rotate freely. •Suitable for POF, PVC, PP, PET heat shrinkable film.
Model: FQL450
Power Supply: 220V/50-60HZ
Air Supply: 6.0-8.0kg/cm²
Power: 1.6KW
Packaging Speed: 15-30 bags/min
Maximum Packaging Size (Vertical Length L + Height H): ≤400mm
Maximum Packaging Size (Horizontal Width W + Height H): ≤300mm
Sealing Blade Size (L x W): 570x470mm
Machine Dimensions (Length x Width x Height): 1700x830x1450mm
Total Weight: 300kg
Applicable Shrink Film: POF, PE
Machine Package Volume: 1800x1000x1670=3m³ (Width calculation formula: Product width Wmm + Height Hmm + 150mm)
Model: “BSN4020C
BSN4020CK” Power supply: 220V-380V/50-60HZ
Power: 9KW
Shrinking furnace size length*width*height (mm): 1200*400*200
Pass product size Width*Height (mm): 200*100
Conveying speed: 0-15 meters/minute
Conveying material: S, W, T, LW
Conveying load: 10KG
Machine size length*width*height (mm): 1600*560*660
Overall machine weight: 80kg
Volume after machine packaging: “1650*610*720=0.74m³” Applicable shrink film: POF, PVC
Tripod, workbench height adjustable range 550-780mm
±50mm adjustable
The shrinking furnace can be customized in size according to the product.
For more models, please consult whatsapp customer service. Edge sealing machine
